>> Thermoelectric Generator/ Seebeck generator-TEG Modules

A thermoelectric generator relies on the "thermoelectric effect" to convert heat directly into electricity. It is a solid state device with no moving parts and so it is completely silent and extremely reliable. Due to the high reliability of thermoelectric power supplies they have been used for years to provide electrical power in space missions where solar power is not available. Two examples of the many space missions that have relied on thermoelectric power supplies are the "Voyager" that was sent into deep space and has operated successfully for more the 20 years and the "Apollo" lunar missions where thermoelectric power supplies powered equipment that was left behind for more than a decade.      .      - Hi-Z Technology

EVERREDtronics has delved into R & D on thermoelectric materials and thermoelectric generator/Seebeck module since 2005, and we have an independant research center led by company professionals and professors from schools of materials science and engineering of Fudan University, Zhejiang University and Central South University. Through years immersion, we have become the leading innovator and manufacturer of the thermoelectric materials (Bi2Te3 based, PbTe based) and thermoelectric generators, and in near future, we will push further and develop products and heat reclaimation system for household and industrial applications, such as converting waste heat deprived from residential wood burning stoves and fireplaces, automotive exhaust system, metal refining, cement manufacturing, Natual gas pipelines into electricity, or even harness geothermal energy by utilizing this promising technology.

Our TEGs are categorized into 2 types based on max. operating temperature/max. Th temperature:



Thermolectric generator

thermoelectric generator

  • Max. 210 Celsius Degree/ 410F / 483.15K / 869.67Ra

Now we could supply the thermoelectric generator modules with Aluminium plates instead of tradtional ceramic plates(Al2O3) .

Left image is the TEG254-1.4-1.6, and right is the same model but delivered with Aluminium plates (thickness 1.2mm, +/- 0.1mm), which could help improve the output by 10%-20% than ceramic TEG. For customized size of aluminium pad modules,Click.

TEG module thermoelectric generator
     The following specification are based on that the hot side temperature is at 160℃ and cold side at 50℃.
TEG P/N Dimensions(mm) V/K Open circuit V Matched load Ohm Matched output Voltage Matched output Power W λ-W/℃ Heat Flow through module W
Hot side Cold
TEG31-2.8-1.2 30×30 30×30 0.02273 2.5 0.3 0.84 6.5 1 154.8
TEG49-4.5-2.0 62×62 62×62 0.03091 3.4 2 1.33 13 1.3 220.3
TEG49-4.5-2.5 62×62 62×62 0.03091 3.4 0.24 1.33 12.2 1 200.0
TEG71-1.4-1.6 30×30 30×30 0.04636 5.1 1.9 1.92 3.9 0.5 84.8
TEG127-1.4-1.0 40×40 40×40 0.05818 6.4 1.8 3.2 5.2 2 104.0
TEG127-2.0-1.3 50×50 50×54 0.05818 6.4 1.3 3.2 7.9 2.02 143.6
TEG127-2.0-1.6 50×50 50×54 0.05818 6.4 1.6 3.2 6.4 1.62 114.3
TEG161-1.2-2.0 40×40 40×40 0.05818 6.4 6.8 4.04 3.7 0.85 77.1
TEG161-1.2-4.0 40×40 40×40 0.05727 6.3 13.4 4.04 3 0.6 54.5
TEG241-1.0-1.2 40×40 40×40 0.11000 12.1 10 6 3.6 1 72.0
TEG241-1.4-1.2 54×54 54×57 0.10455 11.5 4.5 7 7 2.18 120.7
TEG254-1.4-1.2 40×80 44×80 0.10455 11.5 4.8 7 7 2.3 125.0
TEG254-1.4-1.6 40×80 44×80 0.11636 12.8 7.2 6.7 6.2 1.6 101.6
TEG450-0.8-1.0 54×54 54×57 0.19091 21 28 12 5 1.45 83.3
  • Max. 320 Celsius Degree/ 608F / 593.15K / 1067.67Ra
     The following specification are based on that the hot side temperature is at 300℃ and cold side at 50℃.
 TEG P/N Length Width V/K Open circuit V Matched output Ohm Matched output Voltage Matched output current A Matched output power W Heat flow through module W
TEG126-30A 30 30 0.03963 9.91 5.3 5.1 0.97 4.9 120.4
TEG126-40A 40 40 0.03963 9.91 5.3 5.2 0.98 5 120.4
TEG126-60A 56 56 0.03111 7.78 1.6 4 3.36 13.2 338.0
TEG241-60A 56 56 0.06519 16.30 4.1 8.5 1.96 16.5 362.0
TEG126-30B 30 30 0.03333 8.33 2.5 4.4 1.52 6.7 144.4
TEG126-40B 40 40 0.02667 6.67 1.7 3.58 1.9 6.8 137.0
TEG126-60B 56 56 0.03111 7.78 0.8 4.12 4.4 18 357.4
TEG241-60B 56 56 0.05333 13.33 2.3 7 2.84 19.7 387.0
Customer Testing Images

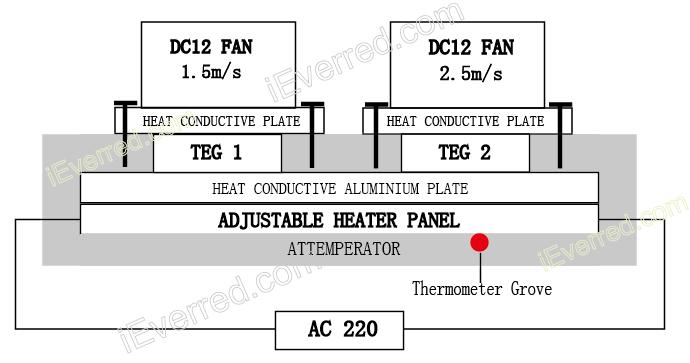

TEG Test graph TEG TEST.1 TEG.Test.2

Important

Test indicates that the TEGs share the same characteristics as those of batteries- when connected in series, Voutput=VTEG1 + VTEG2+... (Note the inner resistance of whole system will increase at the same time.); when in Parallel, VTEG1=VTEG2 =VTEG3=V...(Note: Connect the same TEG under the same circumstance and keep the heat flux as even as possible); Therefore, to achieve higher Output Voltage or current, you could combine series and parallel connection and use DC-DC converter, and if you need AC output, please use a DC-AC converter.

                                                                                                                                                  Contact our representative or use the Inquiry Form.
