Led Strips Catalogue-EVERREDtronics Ltd.

Waterproof
Input: 12VDC,low power consumption;
Large viewing angle: 80~100 degree
Minimum 100cmX1.8cm, Made of 60 Super Bright SMD LEDs
For indoor and outdoor application,
Replacement for neon lights,incandescence,decoration...

LM-WR-5050W White, 180~220mA,90~95lm
LM-WR-5050R Red, 160~200mA,620~625nm,55~60lm
LM-WR-5050G Pure Green, 180~220mA,515~525nm,105~110lm
LM-WR-5050B Blue, 180~220mA,465~475nm,45~50lm
LM-WR-5050Y Yellow(Amber), 140~200mA,586~593nm,55~60lm Datasheet
LM-WR-5050RGB Red: 600mcd/LED, Green 1300mcd/LED, Blue 300mcd/LED Datasheet

>> Led Lighting Products: LED Strips

Shenzhen

Tel: +86-755-8624 1806, +86-755-8197 0125

Fax: +86-755-2657 3392

sales@everredtronics.com

Shanghai

Tel: +86-21-6441 6123

Fax: +86-21-6441 6123

sales@everredtronics.com

All our Products are RoHs compliant

GUARANTEE

LED Lighting | Embeded System | Thermoelectric Modules

· Led Lamps/Bulbs

· Led Strips

· Led Modules

· Led Tubes

· Led backlights

CONTACT US

Input: 12VDC,low power consumption;Large viewing angle: 110~130 degree
300mmX10mm,Made of 18pcs super bright SMD, long life time: Up to 50K hours
For indoor and outdoor application, replacement for neon lights,incandescence,decoration...

LM-1210R-30W White, 180~220mA,70~75lm
LM-1210R-30R Red, 140~200mA,636~639nm,30~35lm
LM-1210R-30G Pure Green, 180~220mA,515~525nm,95~100lm
LM-1210R-30B Blue, 180~220mA,473~476nm,25~30lm
LM-1210R-30Y Yellow(Amber), 140~200mA,587~591nm,45~50lm Datasheet

Input: 12VDC,low power consumption;Large viewing angle: 110~120 degree
300mmX10mm,Made of 15pcs super bright SMD, long life time: Up to 50K hours
For indoor and outdoor application, replacement for neon lights,incandescence,decoration...
LM-5050R-30RGB

R: 621-624nm VF=12, 21~25lm;
G: 516-518nm VF=12, 50~55lm;
B: 469-471nm VF=12, 21~25lm; Datasheet

Input: 12VDC,low power consumption;Large viewing angle: 110~130 degree
254mmX11mm,Made of 15pcs super bright 3528SMD, long life time: Up to 50K hours
Flexible,For indoor and outdoor application, replacement for neon lights,incandescence,decoration...

LM-1210F-30W White, 180~220mA,70~75lm
LM-1210F-30R Red, 140~200mA,636~639nm,30~35lm
LM-1210F-30G Pure Green, 180~220mA,515~525nm,95~100lm
LM-1210F-30B Blue, 180~220mA,473~476nm,25~30lm
LM-1210F-30Y Yellow(Amber), 140~200mA,587~591nm,45~50lm
Datasheet
Lighting Pictures

Input: 12VDC,low power consumption;Large viewing angle: 100~120 degree
For indoor and outdoor application, replacement for neon lights,incandescence,decoration...

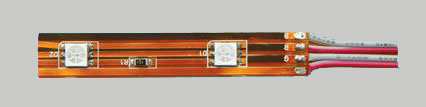

LM-5050F-15RGB

300mA,254mmX11mm,Made of 15pcs super bright 5050SMD, long life: Up to 50K hours
R: 621-630nm, lighting intensity Typ.: 45 Lm;
G: 520-530nm, lighting intensity Typ.: 51 Lm;
B: 465-475nm, lighting intensity Typ.: 11 Lm; Datasheet
