Part No.

Color

Lens Type

λD(nm)
Typ.

VF(V)
Typ.
Iv(mcd)@20mA
Viewing Angle
2θ1/2
Unit
Price
USD

Data
Min.
Typ..
L-590PWC
White
Water Clear
6000~10000K
3.2
400
800
---
0.099
L-590WWC
Warm White
Water Clear
3000~3300K
3.2
400
700
---
0.102
L-590URC
Red
Water Clear
629
2.25
500
800
---
0.051
L-590GYC
Yellow
Water Clear
589
2.25
500
800
---
0.085
L-590PG25C
Green
Water Clear
525
3.6
500
830
---
0.130
L-590PG15C
Green
Water Clear
515
3.4
550
920
---
0.130
L-590LBC
Blue
Water Clear
480
3.2
160
270
---
0.069
Copyright ã 2006-2011  EVERREDtronics  Ltd.  All rights reserved.
Any copying, distribution, re-transmission or publication is strictly prohibited without the written consent of the Company.



Home  |  How to  |  Products  |  LEDs Class  |  Contacts  |  Search
LED Lighting | Embeded System | Thermoelectric Modules
 NAVIGATION

            · Round Leds
               A. 3mm Leds
               B. 5mm Round top
               C. 5mm Flat top
               D. 10mm Leds
               E.  0.5W 5mm Leds
               F. 4.8mm Leds
            · Oval Leds
            · Super Flux Leds
            · RGB Leds
            · Power Leds
               A. 1W,3W,5W
               B. 10W,20W,30W..
               C. Power LEDs: RGB
            · SMT/SMD
               A. Top Led
               B. Chip Led
            · Traffic Leds
            · IR LEDs
5mm Flat Top LEDs Lighting Pictures.


      1. Select products you would like to buy
      2. For each product there is also pricelists
      3. Send us an order - please following bellowing
          example order.
      4. Order send via email or email  from Contacts.
      5. We send you proforma invoice.
      6. You pay us.
                                                                      More >>
  • How to/FAQ
           · Shipping Districts
           · Shipping Rate

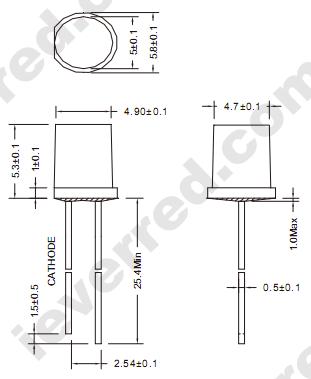

5mm_Flat_Top_Leds_Size
  IMPORTANT:
1.All dimensions are in millimeters
2.Lead spacing is measured where the leads emerge from the package.
3.Prutruded resin under flange 1.5mm(0.059")Max

4.  5mm LEDs Taping and Reel (Ammopack) Specifications
